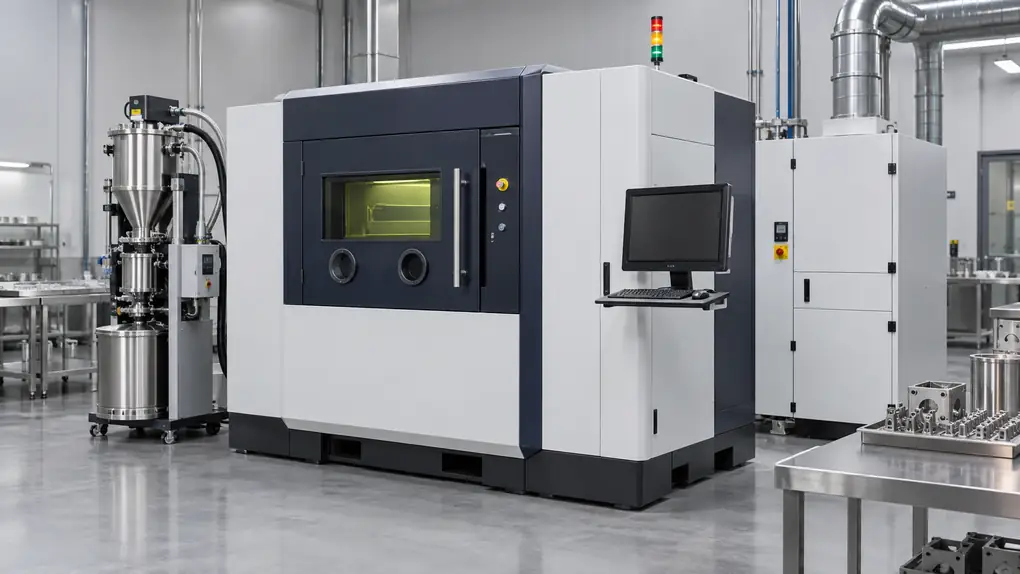

AI-generated SLM process illustration; not a photograph of SLM M150 Series, the quoted equipment or a delivered unit. Enclosure, head count and auxiliaries shown do not establish this model's configuration.

SLM · Series reference

EverBen SLM M150 Series 3D Printer: specifications and configuration review

SLM M150 Series: 150 mm cube metal LPBF reference with single- or dual-500 W laser candidates. The 7/9 kW and 20–50 cm³/h entries lack a configuration and alloy mapping.

Request this configuration Compare adjacent models ↓

AI-generated SLM process illustration; not a photograph of SLM M150 Series, the quoted equipment or a delivered unit. Enclosure, head count and auxiliaries shown do not establish this model's configuration.

Processmetal LPBF / SLM

Current availabilityPending confirmation

Specification statusNeeds configuration confirmation

Reference reviewed2026-09-08

Configuration decisions

What to resolve for SLM M150 Series

Which M150 laser configuration is represented?

The source writes 500 W × 1/2 at 1064 nm, alongside 7/9 kW and 20–50 cm³/h. It does not assign these load and output figures to each variant, so request one complete row per laser and alloy package.

How does the M150 Series differ from M150D?

Decision coverage

Selection fields and gaps

Values below come from this model’s reference table. A pending field must be resolved before it is used for selection; a material-family list does not qualify a grade.

Build envelope: 150mm*150mm*150mm
Layer setting: 0.02-0.1 mm
Laser: IPG 500W×1/2 (1064nm)
Material grade / qualification: Stainless steel, cobalt chromium alloy, titanium alloy, tool steel, etc
Electrical supply: 220V 50 Hz
Rated load (reference; scope to confirm): Pending confirmation — Power and output figures are not mapped to the laser configuration, alloy and parameter package. Confirm a separate row for each quoted variant.
Preheat / process temperature: No Substrate Preheating

Adjacent configurations

Compare SLM M150 Series with SLM M150D and SLM M150G

Each pair uses the same decision fields. These are source-record differences; output, compatibility and current supply require confirmation for both configurations.

SLM M150 Series / SLM M150D

Reference comparison; unconfirmed fields remain open
Field	SLM M150 Series	SLM M150D
Build envelope	150mm150mm150mm	150mm150mm150mm
Laser	IPG 500W×1/2 (1064nm)	IPG 500W×1/2 (1064nm)
Preheat / process temperature	No Substrate Preheating	200°C
Machine outline (auxiliaries may be excluded)	1280mm860mm1780mm	1300mm930mm2150mm
Machine mass (check net/gross basis)	700kg	830kg
Electrical supply	220V 50 Hz	Pending confirmation — see this model’s reference issues
Rated load (reference; scope to confirm)	Pending confirmation — see this model’s reference issues	Not supplied in this record

SLM M150D: 150 mm cube LPBF reference with 200 °C substrate heating and a listed filtration cabinet. Single/dual laser options and the combined 8.8 kW supply entry need pairing.

Review SLM M150D specifications →

SLM M150 Series / SLM M150G

Reference comparison; unconfirmed fields remain open
Field	SLM M150 Series	SLM M150G
Build envelope	150mm150mm150mm	150 × 150 × 150mm
Laser	IPG 500W×1/2 (1064nm)	500W IPG Green Single-Mode Fiber Laser (500W)
Preheat / process temperature	No Substrate Preheating	Up to 200°C (with integrated piston water cooling)
Machine outline (auxiliaries may be excluded)	1280mm860mm1780mm	1280 × 860 × 1780mm
Machine mass (check net/gross basis)	700kg	Not supplied in this record
Electrical supply	220V 50 Hz	220V 50Hz 10kW
Rated load (reference; scope to confirm)	Pending confirmation — see this model’s reference issues	220V 50Hz 10kW

SLM M150G: 150 × 150 × 150 mm green-laser LPBF reference with up to 200 °C plate heating. The source-described 500 W laser lacks a model and wavelength.

Review SLM M150G specifications →

Reviewed reference record

Basic Parameters for EverBen SLM M150 Series 3D Printer

Reviewed on 2026-09-08. This is a third-party source record for an EverBen inquiry designation. It does not establish a current signed specification, model mapping or supply authorization.

Build Size: 150mm*150mm*150mm
External Dimensions: 1280mm*860mm*1780mm
Forming Materials: Stainless steel, cobalt chromium alloy, titanium alloy, tool steel, etc
Powder Supply Method: Double Cylinder Two-Way Powder Feeding
Printing Accuracy: Pending confirmation — The fixed term in the source accuracy formula has no unit. A signed formula and measurement method are required.
Layer Thickness: 0.02-0.1 mm
Protection System: Efficient Protective Gas Circulation System (Nitrogen, Argon)
Supporting Consumables: Stainless Steel Powder, no less than 40kg, with various material process parameter packages
Laser Type: IPG 500W×1/2 (1064nm)
Scanning System: SCANLAB (Equipped with F-theta Field Lens)
Laser Speed: Scanning:1.0~4.0m/s (Recommended); Jumping: 5~7m/s(Recommended); Up to 11m/s
Data Processing Software: Voxeldance Additive / Magics (SLC file)
Equipment Control Software: Source-listed machine-control or slicing software; current product name, licence, provider, version and compatibility must be confirmed in the controlled quotation.
Operating System: Windows 10
Data Format: STL/SLC/JOB
Power Supply: 220V 50 Hz
Rated Power Consumption: Pending confirmation — Power and output figures are not mapped to the laser configuration, alloy and parameter package. Confirm a separate row for each quoted variant.
Preheat Temperature: No Substrate Preheating
Industrial Control Computer Configuration: Gen i7, 16GB RAM
Forming Efficiency: Pending confirmation — Power and output figures are not mapped to the laser configuration, alloy and parameter package. Confirm a separate row for each quoted variant.
Relative Humidity: Below 40%, Frost-free
Ambient Temperature: 15-30 °C
Equipment Weight: 700kg

Needs configuration confirmation

M150 lists double-cylinder two-way powder feeding and no substrate preheating. M150D lists upward feeding, single-direction variable-speed coating, a filtration cabinet and 200 °C substrate heating. Confirm these distinctions in the offer. Current availability, EverBen-to-source model mapping and signed specification revision require confirmation.

Source and corrections

Reference status and open fields

Legacy source record — Model parameter table and overview; reviewed 2026-09-08. Source revision not stated; request a current controlled datasheet and model mapping.

The legacy record does not establish a current manufacturer, supply authorization or EverBen model mapping. Request the current controlled datasheet with your inquiry.

Source wording retained for clarification (3 entries; not approved specifications)

Printing Accuracy — pending

Unresolved source wording: ±0.1(L≤100 mm);±0.1%*L(L>100 mm)

The fixed term in the source accuracy formula has no unit. A signed formula and measurement method are required.

Rated Power Consumption — pending

Unresolved source wording: 7kW/9kW, Single-phase Electricity

Power and output figures are not mapped to the laser configuration, alloy and parameter package. Confirm a separate row for each quoted variant.

Forming Efficiency — pending

Unresolved source wording: 20~50cm³/h

Power and output figures are not mapped to the laser configuration, alloy and parameter package. Confirm a separate row for each quoted variant.

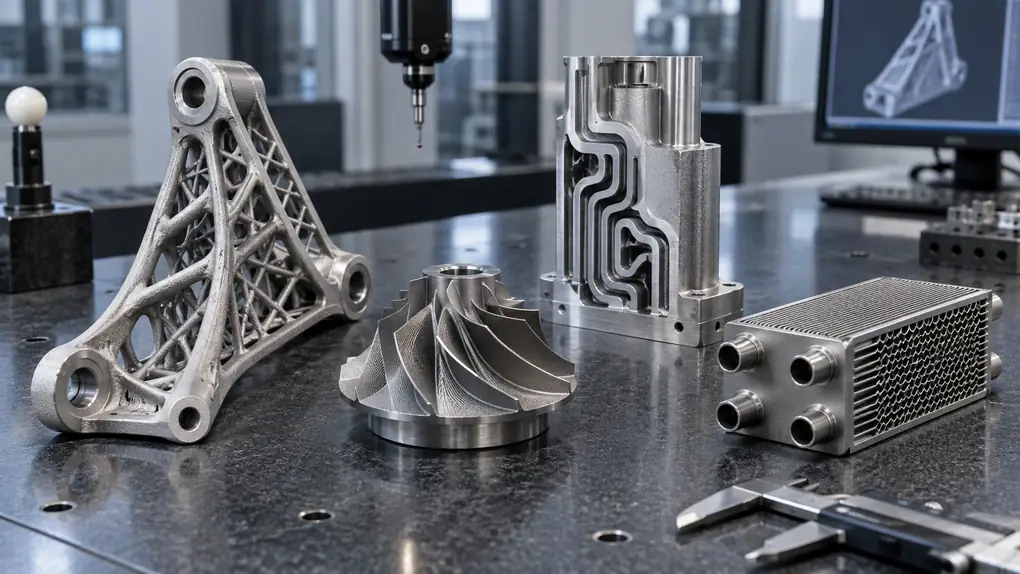

AI-generated SLM sample illustration; not a measured sample from SLM M150 Series. Material, finish and performance require the benchmark below.

Model-specific acceptance

Benchmark to request for SLM M150 Series

Compare identical 150 mm nests and coupons for each selected laser configuration, including overlap-zone measurements, alloy, atmosphere and total cycle time.

The report should name the machine revision, material lot, parameters, post-processing and measurement method, with raw results and agreed acceptance limits.

Request this benchmark

Further planning

Process, installation and purchasing guidance

metal LPBF / SLM process and material guide · Installation, training and acceptance scope · MOQ, quotation and commercial questions

Request a signed model/configuration mapping, current datasheet, genuine model photographs and a quotation naming the supply and warranty parties.

Next practical step

Resolve the SLM M150 Series configuration.

Send the part envelope, material grade, quantity and destination with the open fields above. Request the matching specification and acceptance plan with your quotation.
