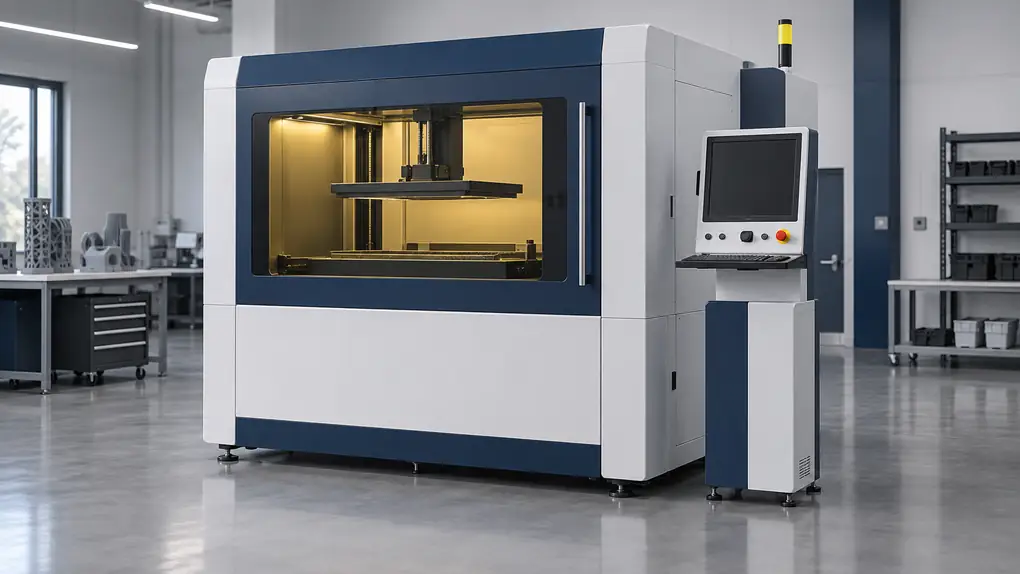

AI-generated SLA process illustration; not a photograph of SLA 400 Pro, the quoted equipment or a delivered unit. Enclosure, head count and auxiliaries shown do not establish this model's configuration.

SLA · Model reference

EverBen SLA 400 Pro 3D Printer: specifications and configuration review

SLA 400 Pro: 400 × 400 mm SLA platform reference with 200 or 300 mm height options and an explicit 355 nm wavelength. Build height, resin fill and electrical phase need pairing.

Request this configuration Compare adjacent models ↓

AI-generated SLA process illustration; not a photograph of SLA 400 Pro, the quoted equipment or a delivered unit. Enclosure, head count and auxiliaries shown do not establish this model's configuration.

ProcessSLA resin printing

Current availabilityPending confirmation

Specification statusNeeds configuration confirmation

Reference reviewed2026-09-08

Configuration decisions

What to resolve for SLA 400 Pro

Are the two heights paired with resin quantities?

The table lists 400 × 400 × 200 mm or 400 × 400 × 300 mm and a first-tank weight of 70 or 100 kg. It does not map each resin quantity to a named height configuration; request that pairing.

What is known about the light source and supply?

Decision coverage

Selection fields and gaps

Values below come from this model’s reference table. A pending field must be resolved before it is used for selection; a material-family list does not qualify a grade.

Build envelope: 400*400*200mm / 400*400*300mm
Layer setting: Optional (between 0.05mm-0.2mm)
Laser: Diode-Pumped Solid-State Laser Nd, Wavelength 355nm
Wavelength: 355 nm (explicitly stated in the source Laser field)
Electrical supply: Pending confirmation — The source term Unidirectional 10A does not establish phase or wiring. Confirm voltage, phase, frequency and current.
Rated load (reference; scope to confirm): 1.2 kVA
First-tank resin entry: 70kg / 100kg

Adjacent configurations

Compare SLA 400 Pro with SLA 450 Pro and SLA 6035 Pro

Each pair uses the same decision fields. These are source-record differences; output, compatibility and current supply require confirmation for both configurations.

SLA 400 Pro / SLA 450 Pro

Reference comparison; unconfirmed fields remain open
Field	SLA 400 Pro	SLA 450 Pro
Build envelope	400400200mm / 400400300mm	450450350mm
First-tank resin entry	70kg / 100kg	130kg
Machine outline (auxiliaries may be excluded)	Not supplied in this record	104cm(W)117cm(D)216cm(H)
Machine mass (check net/gross basis)	650kg	720kg
Rated load (reference; scope to confirm)	1.2 kVA	1.2KVA

SLA 450 Pro: 450 × 450 × 350 mm SLA reference with a 130 kg resin entry. Compare its square footprint with the 600 × 350 mm footprint of SLA 6035.

Review SLA 450 Pro specifications →

SLA 400 Pro / SLA 6035 Pro

Reference comparison; unconfirmed fields remain open
Field	SLA 400 Pro	SLA 6035 Pro
Build envelope	400400200mm / 400400300mm	600350350mm
First-tank resin entry	70kg / 100kg	130kg
Machine outline (auxiliaries may be excluded)	Not supplied in this record	118cm(W)99cm(D)217cm(H)
Machine mass (check net/gross basis)	650kg	780kg
Rated load (reference; scope to confirm)	1.2 kVA	1.2KVA

SLA 6035 Pro: 600 × 350 × 350 mm narrow-format SLA reference with 130 kg first-tank resin. It differs substantially in width and height from the 600 × 600 × 400 mm SLA 600.

Review SLA 6035 Pro specifications →

Reviewed reference record

Basic Parameters for EverBen SLA 400 Pro 3D Printer

Reviewed on 2026-09-08. This is a third-party source record for an EverBen inquiry designation. It does not establish a current signed specification, model mapping or supply authorization.

Printing Size: 400*400*200mm / 400*400*300mm
First Tank Weight: 70kg / 100kg
Equipment Dimensions: 85cm(W)*105cm(D)*190cm(H)
Printing Precision: ±0.08(L≤100mm); ±0.1%*L(L>100mm)
Layer Thickness: Optional (between 0.05mm-0.2mm)
Laser Type: Diode-Pumped Solid-State Laser Nd, Wavelength 355nm
Beam Size: Variable Beam Size between 0.08mm-0.8mm
Scanning System: High-speed Scanning Galvanometer System, Paired with F-theta Lens
Scanning Speed: 8-15m/s automatically generates scanning paths
Equipment Control Software: Source-listed machine-control or slicing software; current product name, licence, provider, version and compatibility must be confirmed in the controlled quotation.
Operating System: Windows 10
Data Interface: STL, SLC
Power Supply: Pending confirmation — The source term Unidirectional 10A does not establish phase or wiring. Confirm voltage, phase, frequency and current.
Rated apparent power: 1.2 kVA
Heating Method: Hot Air Heating (optional)
Ambient Temperature: 20-26°C
Relative Humidity: ≤40%, Frost-free
Equipment Weight: 650kg
Wavelength: 355 nm (explicitly stated in the source Laser field)

Needs configuration confirmation

The Laser field explicitly states 355 nm, now included in the coverage check. The electrical phrase Unidirectional 10A is ambiguous and cannot establish a single-phase supply; phase and wiring remain pending. Current availability, EverBen-to-source model mapping and signed specification revision require confirmation.

Source and corrections

Reference status and open fields

Legacy source record — Model parameter table and overview; reviewed 2026-09-08. Source revision not stated; request a current controlled datasheet and model mapping.

The legacy record does not establish a current manufacturer, supply authorization or EverBen model mapping. Request the current controlled datasheet with your inquiry.

Source wording retained for clarification (2 entries; not approved specifications)

Power Supply — pending

Unresolved source wording: 200-240V, 50/60Hz, Unidirectional 10A

The source term Unidirectional 10A does not establish phase or wiring. Confirm voltage, phase, frequency and current.

Supply power — pending

Unresolved source wording: 200-240V, 50/60Hz, Unidirectional 10A

The source term Unidirectional 10A does not establish phase or wiring. Confirm voltage, phase, frequency and current.

AI-generated SLA sample illustration; not a measured sample from SLA 400 Pro. Material, finish and performance require the benchmark below.

Model-specific acceptance

Benchmark to request for SLA 400 Pro

Prepare the same part layout for each proposed Z-height variant and record actual usable height, resin fill and cured dimensions.

The report should name the machine revision, material lot, parameters, post-processing and measurement method, with raw results and agreed acceptance limits.

Request this benchmark

Further planning

Process, installation and purchasing guidance

SLA resin printing process and material guide · Installation, training and acceptance scope · MOQ, quotation and commercial questions

Request a signed model/configuration mapping, current datasheet, genuine model photographs and a quotation naming the supply and warranty parties.

Next practical step

Resolve the SLA 400 Pro configuration.

Send the part envelope, material grade, quantity and destination with the open fields above. Request the matching specification and acceptance plan with your quotation.
